VELARIUM SLIDE PRO
A premium sliding system with 22 mm insulating glass, ideal for terraces and façades. The panels slide independently on four reinforced tracks, delivering thermal comfort, durability and flexible ventilation — configurable with up to eight panels for a 10-metre opening.
Technical specifications
Velarium systems can be configured to order, including for large-scale projects, according to the architectural requirements.
Key advantages
- 22 mm toughened insulating glass (4-14-4)
- Four parallel sliding tracks
- Panels slide independently and smoothly
- Stainless steel insert in the bottom track for durability
- Locking system with a flush handle and key
- Brush and gasket sealing for weather protection
Configurations

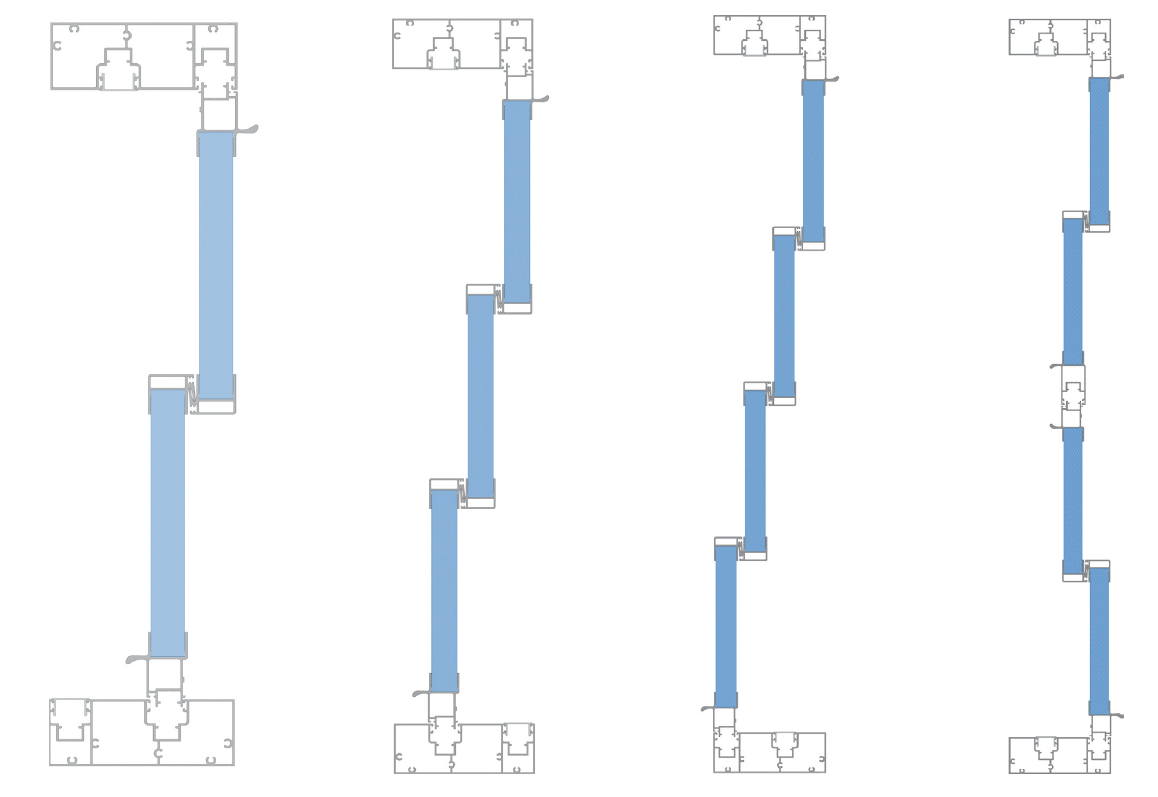

Configuration diagram 1

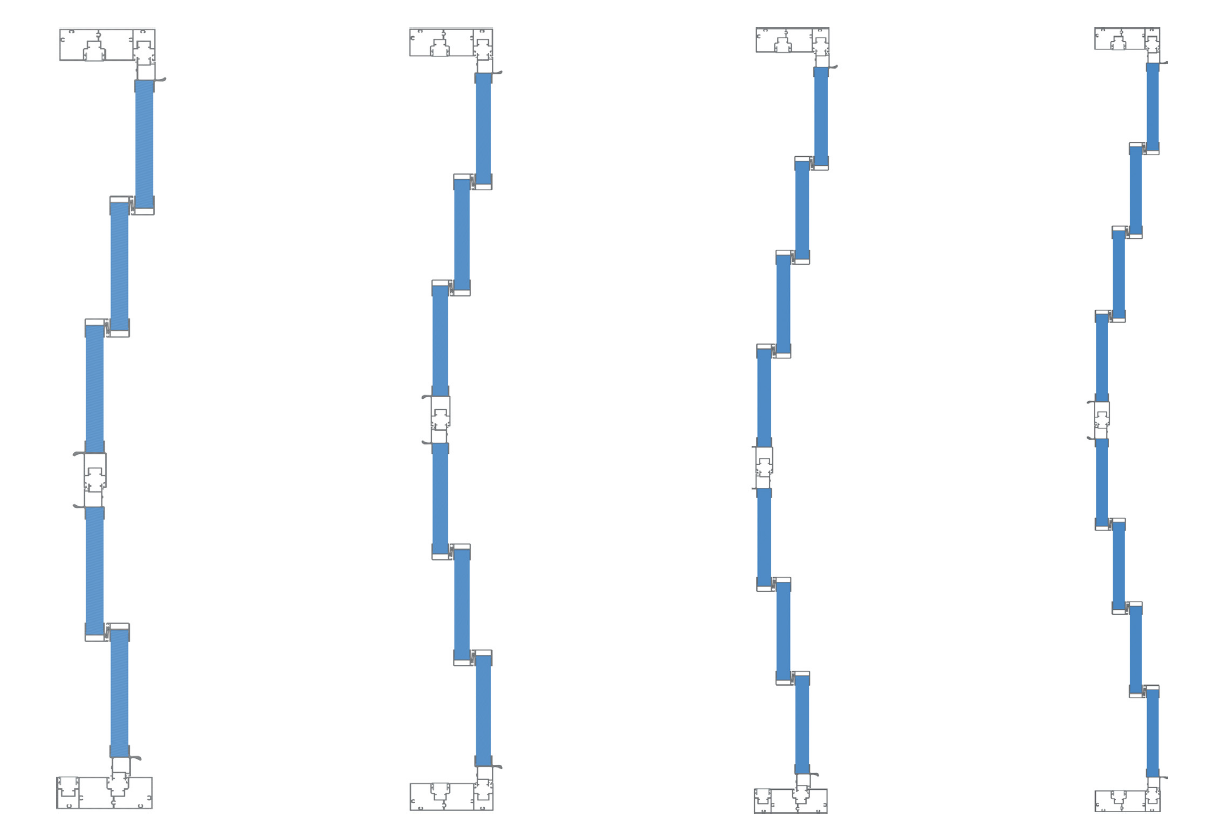

Configuration diagram 2

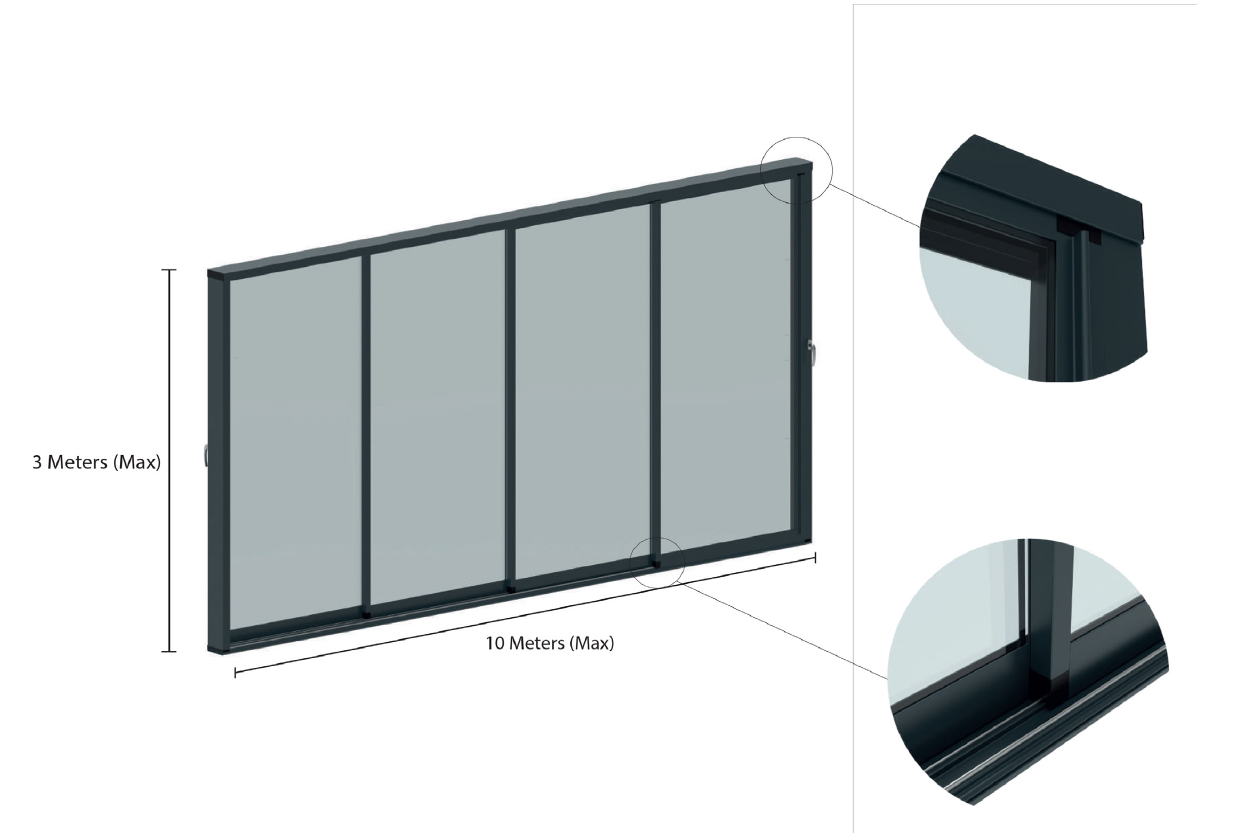

Dimensions and performance
The Velarium Slide Pro system is engineered for wide openings, supporting a maximum width of 10 metres and a height of up to 3 metres. Precision components make the panels easy to handle, while the minimalist profiles maximise the glazed surface.
Performance makes the difference
Our sliding systems are engineered to excel, with clear, proven advantages over the standard systems on the market. From the quality of the glass to thermal and acoustic efficiency, the difference shows in every detail.
Glass quality
High resistance to impact and pressure, dependable in extreme conditions. If it does break, it shatters into small, blunt fragments that reduce the risk of injury.
Lower-grade glass can be brittle and break easily, putting the safety of the building and the people around it at risk.
Thermal insulation
With insulating glass, thermal and acoustic insulation is far better than a conventional system, keeping your space comfortable whatever the weather outside.
No effective insulation, which drives up heating costs. Poor-quality glass leads to significant heat loss and a cold interior in winter.
Acoustic insulation and sealing
Highly effective at cutting outside noise (by up to 75%) and superior protection against the weather.
These glass units do not block sound effectively, which makes for a noisier interior, especially in busy or high-traffic areas.
FAQ VELARIUM SLIDE PRO
What type of glass does the Velarium Slide Pro system use?
How well sealed is this sliding glass system?
What is the largest opening one system can cover?
Can the glass panels be locked?
