VELARIUM SMART
VELARIUM SMART is the efficient answer to outdoor comfort with style, developed specifically for Mediterranean climates. With rotating louvres and compact integrated gutters, the pergola makes light and ventilation easy to control. Built on the Smart-Frame structure — elegant and lightweight — it combines functionality, aesthetics and climate adaptability. Ideal for residential projects built around outdoor living.
Technical specifications
Maximum width 4000 mm
Maximum projection 5300 mm
Maximum height 3000 mm
Louvre function Rotation only, up to 105°
Structure Smart-Frame aluminium
Drainage Compact integrated gutter system
Drive Motorised (electric actuator)
Note
Velarium systems can be configured to order, including for large-scale projects, according to the architectural requirements.
Key advantages
- Rotating louvres (rotation only) up to 105°
- Compact integrated gutters for efficient drainage
- Lightweight, elegant Smart-Frame structure
- Precise control of light and ventilation
- Design optimised for Mediterranean climates
- LED lighting can be integrated
Construction detail
Configurations
Single unit
Multiple units

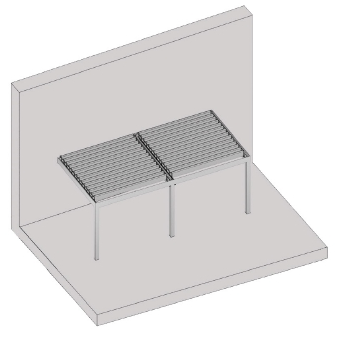

Double unit with wall fixing

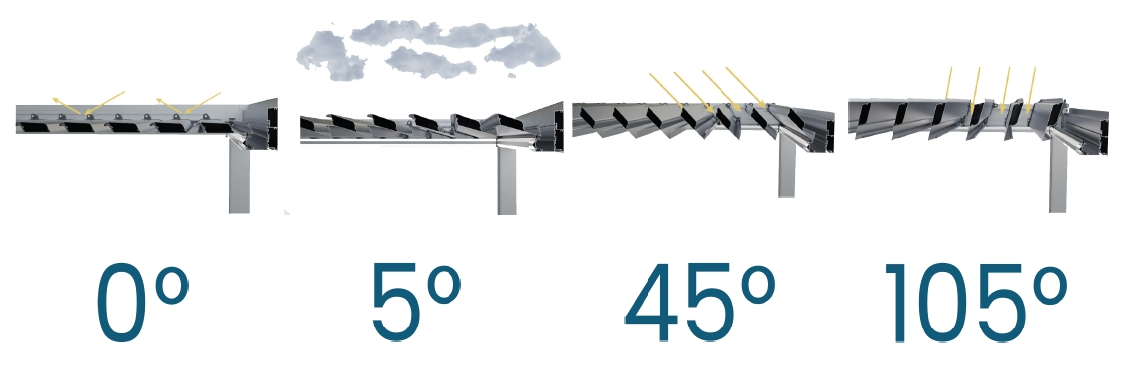

Precise control of light
The system rotates the louvres to four key positions: 0° for a closed roof, 5° for minimum ventilation during rain, 45° for optimal shade and 105° for maximum opening and natural ventilation.
Frequently asked questions
FAQ VELARIUM SMART
How does Velarium Smart compare with the other bioclimatic models?
Velarium Smart is optimised for efficiency and ideal for Mediterranean climates. It offers a lightweight structure (Smart-Frame) and precise shade control (louvre rotation only, up to 105°), making it a more accessible solution for residential projects.
Does it have an integrated drainage system?
Yes. Even though it is a streamlined model, it includes compact integrated gutters that collect rainwater and channel it away in a controlled way.
Can LED lighting be added to Velarium Smart?
Yes, the system supports integrated LED lighting so you can enjoy your terrace after dark as well.
